high voltage lipo battery

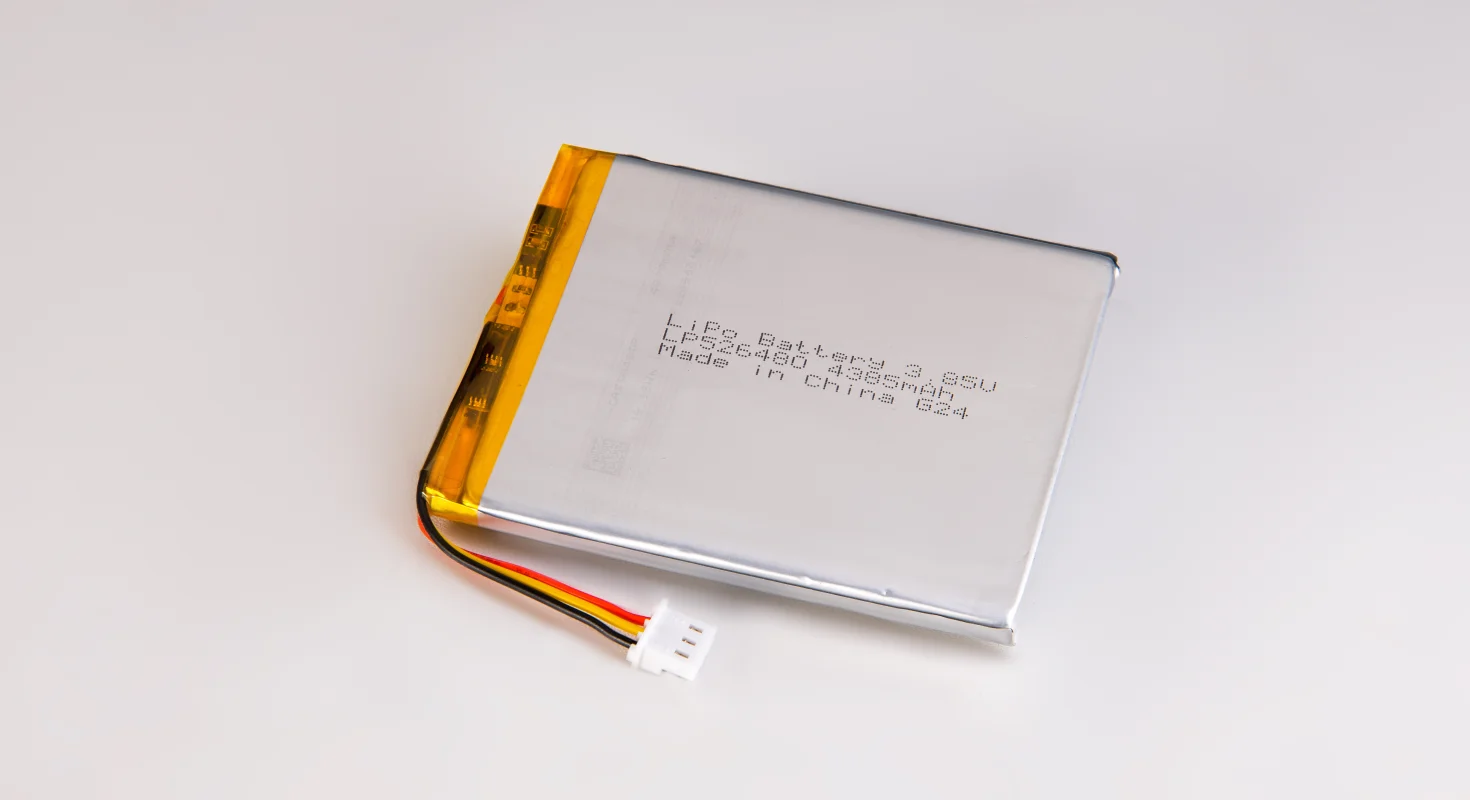

LiHv Battery 3.85V 4385mAh LPHV526480

liHv Battery (High voltage lipo battery) proivdes Higher Norminal Voltage 3.80V to 3.90V with a full charged voltage 4.35V to 4.40V.  Increased Energy Density LiHv Battery 20-30% more than standard lipo battery. Allow devices to operate more effectively under the same power conditions. LiHv batteries offer higher energy capacity and better performance compared to traditional LiPo batteries, making them suitable for high-performance applications.


Battery Type
LiHv Battery (High Voltage LiPo Battery)
Part Number
LPHV526480
Voltage @ Capacity
3.85V @ 4385mAh 16.88Wh
Protection Circuit
Yes
Thermistor (NTC)
10K 1%@+25C B3380
Wires
UL1571 AWG24 50mm x 3
Connector
Molex 50-37-5023(B)
Dimension
81 x 64 x 5,2mm
Charge Current
0.2C to 0.5C
Discharge Current
0.5C to 1.0C
Other
Datasheet



Other LiHv Batteries

LiPo Battery 3.7V 400mAh LiPo Battery 3.7V 400mAh

LiHv Battery LPHV576981 3.85V 5898mAh

LPHV576981 3.85V@5985mAh 23Wh
with Protection Circuit 10K NTC & JST PHR-3
Dimension: 5,7 x 69 x 82mm

LiHv Battery LPHV536578 3.85V 5124mAh

LPHV576981 3.85V@5985mAh 23Wh
with Protection Circuit & JST PHR-2
Dimension: 5,3 x 65 x 79mm
LiPo Battery 3.7V 400mAh LiPo Battery 3.7V 400mAh

LiHv Battery LPHV506586 3.85V 5050mAh

LPHV506586 3.85V@5050mAh 19.44Wh
with Protection Circuit & JST PHR-2
Dimension: 5,0 x 65 x 87mm

LiHv Battery LPHV486691 3.85V 5000mAh

LPHV486691 3.85V@5000mAh 19.25Wh
with Protection Circuit & JST PHR-2
Dimension: 4,8 x 66 x 92mm
LiPo Battery 3.7V 400mAh LiPo Battery 3.7V 400mAh

LiHv Battery LPHV1138114 3.8V 7000mAh

LPHV1138114 3.8V@7000mAh 26.6Wh
with Protection Circuit & Wire x 2pcs
Dimension: 11,0 x 38 x 115mm

LiHv Battery LPHV536976 3.85V 4992mAh

LPHV536976 3.85V@4992mAh 19.22Wh
with Protection Circuit & JST PHR-2
Dimension: 5,3 x 69 x 77mm
Fill out my online form.



LiHv Battery List


Part Number Capacity Normal Voltage Length (mm) Width (mm) Thickness (mm) Full Voltage
LPHV245065 3.8V 1050mAh 65 50 2.4 4.35
LPHV255061 3.9V 1195mAh 61 50 2.5 4.5
LPHV2567126 3.85V 3585mAh 126 67 2.5 4.45
LPHV257266 3.85V 1800mAh 66 72 2.5 4.4
LPHV2662120 3.85V 3000mAh 120 62 2.6 4.4
LPHV2669122 3.85V 3595mAh 122 69 2.6 4.4
LPHV2681107 3.9V 3820mAh 107 81 2.6 4.48
LPHV2698115 3.85V 5020mAh 115 98 2.6 4.43
LPHV274193 3.85V 1700mAh 93 41 2.7 4.45
LPHV274596 3.9V 1890mAh 96 45 2.7 4.48
LPHV275195 3.9V 2070mAh 95 51 2.7 4.5
LPHV2771100 3.85V 2900mAh 100 71 2.7 4.4
LPHV2773131 3.85V 4020mAh 131 73 2.7 4.4
LPHV2798113 3.85V 5020mAh 113 98 2.7 4.43
LPHV2861109 3.9V 3300mAh 109 61 2.8 4.48
LPHV2868127 3.85V 4300mAh 127 68 2.8 4.45
LPHV2868138 3.9V 4535mAh 138 68 2.8 4.48
LPHV2869124 3.85V 3880mAh 124 69 2.8 4.45
LPHV2870119 3.9V 3980mAh 119 70 2.8 4.5
LPHV295195 3.85V 1985mAh 95 51 2.9 4.45
LPHV296683 3.9V 2350mAh 83 66 2.9 4.48
LPHV298783 3.85V 3610mAh 83 87 2.9 4.45
LPHV3042105 3.9V 2420mAh 105 42 3 4.5
LPHV304464 3.9V 1475mAh 64 44 3 4.48
LPHV3072125 3.9V 5345mAh 125 72 3 4.5
LPHV3075123 3.9V 5105mAh 123 75 3 4.48
LPHV3076139 3.85V 5650mAh 139 76 3 4.45
LPHV3138117 3.9V 2545mAh 117 38 3.1 4.48
LPHV314293 3.8V 1834mAh 93 42 3.1 4.35
LPHV315583 3.9V 2515mAh 83 55 3.1 4.5
LPHV3170122 3.85V 4704mAh 122 70 3.1 4.45
LPHV325583 3.9V 2580mAh 83 55 3.2 4.5
LPHV3263103 3.85V 3515mAh 103 63 3.2 4.45
LPHV326586 3.9V 3300mAh 86 65 3.2 4.48
LPHV334195 3.8V 2230mAh 95 41 3.3 4.35
LPHV3344120 3.85V 2613mAh 120 44 3.3 4.4
LPHV337787 3.85V 3665mAh 87 77 3.3 4.43
LPHV341729 3.85V 231mAh 29 17 3.4 4.45
LPHV3476128 3.9V 6215mAh 128 76 3.4 4.48
LPHV355772 3.8V 2130mAh 72 57 3.5 4.35
LPHV356088 3.85V 3318mAh 88 60 3.5 4.45
LPHV361144 3.85V 196mAh 44 11 3.6 4.45
LPHV3644120 3.85V 2895mAh 120 44 3.6 4.4
LPHV366283 3.85V 2900mAh 83 62 3.6 4.45
LPHV384253 3.85V 1380mAh 53 42 3.8 4.45
LPHV3862100 3.85V 3850mAh 100 62 3.8 4.4
LPHV3862141 3.85V 5180mAh 141 62 3.8 4.4
LPHV386990 3.85V 3720mAh 90 69 3.8 4.4
LPHV394688 3.9V 2890mAh 88 46 3.9 4.48
LPHV403661 3.9V 1475mAh 61 36 4 4.48
LPHV4056130 3.85V 4940mAh 130 56 4 4.4
LPHV4056141 3.85V 5540mAh 141 56 4 4.45
LPHV406283 3.9V 3750mAh 83 62 4 4.48
LPHV406787 3.85V 4010mAh 87 67 4 4.4
LPHV407378 3.85V 4050mAh 78 73 4 4.45
LPHV407792 3.85V 4960mAh 92 77 4 4.4
LPHV407878 3.9V 4745mAh 78 78 4 4.48
LPHV416483 3.9V 3920mAh 83 64 4.1 4.48
LPHV4256141 3.85V 5646mAh 141 56 4.2 4.45
LPHV426283 3.9V 4120mAh 83 62 4.2 4.5
LPHV4263133 3.85V 5675mAh 133 63 4.2 4.4
LPHV426391 3.9V 4670mAh 91 63 4.2 4.5
LPHV4264137 3.85V 6313mAh 137 64 4.2 4.45
LPHV426584 3.9V 4600mAh 84 65 4.2 4.5
LPHV426586 3.9V 4350mAh 86 65 4.2 4.5
LPHV426697 3.85V 4920mAh 97 66 4.2 4.45
LPHV427377 3.85V 4328mAh 77 73 4.2 4.45
LPHV433799 3.85V 2200mAh 99 37 4.3 4.45
LPHV436281 3.85V 3700mAh 81 62 4.3 4.4
LPHV436392 3.85V 4435mAh 92 63 4.3 4.45
LPHV4365100 3.85V 4920mAh 100 65 4.3 4.4
LPHV436594 3.9V 4920mAh 94 65 4.3 4.5
LPHV436697 3.85V 4950mAh 97 66 4.3 4.45
LPHV436981 3.85V 4210mAh 81 69 4.3 4.4
LPHV441643 3.85V 329mAh 43 16 4.4 4.4
LPHV446390 3.85V 4500mAh 90 63 4.4 4.45
LPHV446391 3.9V 4520mAh 91 63 4.4 4.5
LPHV446392 3.9V 4670mAh 92 63 4.4 4.5
LPHV446487 3.9V 4500mAh 87 64 4.4 4.48
LPHV446490 3.9V 4420mAh 90 64 4.4 4.48
LPHV446587 3.9V 4500mAh 87 65 4.4 4.5
LPHV446595 3.9V 4930mAh 95 65 4.4 4.5
LPHV446694 3.85V 4920mAh 94 66 4.4 4.45
LPHV4473109 3.85V 6000mAh 109 73 4.4 4.4
LPHV448078 3.85V 5030mAh 78 80 4.4 4.43
LPHV452231 3.85V 325mAh 31 22 4.5 4.45
LPHV454594 3.85V 3482mAh 94 45 4.5 4.45
LPHV454989 3.85V 3584mAh 89 49 4.5 4.45
LPHV456080 3.85V 3820mAh 80 60 4.5 4.4
LPHV456487 3.9V 4730mAh 87 64 4.5 4.48
LPHV456591 3.85V 4940mAh 91 65 4.5 4.45
LPHV456594 3.85V 4720mAh 94 65 4.5 4.45
LPHV456693 3.9V 5000mAh 93 66 4.5 4.48
LPHV4643116 3.9V 4790mAh 116 43 4.6 4.5
LPHV466283 3.9V 3950mAh 83 62 4.6 4.5
LPHV466494 3.85V 4920mAh 94 64 4.6 4.4
LPHV466590 3.9V 4910mAh 90 65 4.6 4.5
LPHV466592 3.9V 5120mAh 92 65 4.6 4.48
LPHV468073 3.85V 4276mAh 73 80 4.6 4.4
LPHV4742120 3.85V 4190mAh 120 42 4.7 4.45
LPHV4745102 3.85V 3839mAh 102 45 4.7 4.45
LPHV475163 3.9V 2955mAh 63 51 4.7 4.5
LPHV475778 3.85V 3545mAh 78 57 4.7 4.4
LPHV476489 3.85V 4920mAh 89 64 4.7 4.45
LPHV476490 3.9V 4920mAh 90 64 4.7 4.48
LPHV476587 3.9V 5100mAh 87 65 4.7 4.5
LPHV476588 3.9V 4920mAh 88 65 4.7 4.48
LPHV476699 3.8V 5250mAh 99 66 4.7 4.35
LPHV476699 3.9V 5920mAh 99 66 4.7 4.48
LPHV477079 3.9V 4775mAh 79 70 4.7 4.5
LPHV478176 3.9V 5500mAh 76 81 4.7 4.48
LPHV478270 3.85V 4525mAh 70 82 4.7 4.4
LPHV478270 3.85V 4525mAh 70 82 4.7 4.4
LPHV484284 3.85V 3035mAh 84 42 4.8 4.43
LPHV485490 3.85V 4075mAh 90 54 4.8 4.4
LPHV485490 3.85V 4030mAh 90 54 4.8 4.4
LPHV485778 3.85V 3550mAh 78 57 4.8 4.4
LPHV485779 3.85V 4094mAh 79 57 4.8 4.45
LPHV485873 3.85V 3749mAh 73 58 4.8 4.45
LPHV486283 3.9V 5100mAh 83 62 4.8 4.48
LPHV486487 3.9V 4920mAh 87 64 4.8 4.5
LPHV486488 3.85V 4890mAh 88 64 4.8 4.4
LPHV486581 3.85V 4795mAh 81 65 4.8 4.45
LPHV486587 3.9V 5100mAh 87 65 4.8 4.5
LPHV486588 3.9V 5080mAh 88 65 4.8 4.5
LPHV486594 3.9V 4920mAh 94 65 4.8 4.5
LPHV486687 3.85V 4920mAh 87 66 4.8 4.45
LPHV486697 3.9V 5885mAh 97 66 4.8 4.5
LPHV486699 3.9V 5920mAh 99 66 4.8 4.48
LPHV486786 3.9V 4920mAh 86 67 4.8 4.48
LPHV487183 3.85V 4750mAh 83 71 4.8 4.45
LPHV487865 3.85V 4165mAh 65 78 4.8 4.45
LPHV488769 3.85V 4830mAh 69 87 4.8 4.4
LPHV491742 3.85V 400mAh 42 17 4.9 4.4
LPHV496275 3.9V 4200mAh 75 62 4.9 4.5
LPHV496387 3.85V 4755mAh 87 63 4.9 4.45
LPHV496388 3.85V 4720mAh 88 63 4.9 4.45
LPHV496487 3.85V 5010mAh 87 64 4.9 4.45
LPHV496488 3.85V 5020mAh 88 64 4.9 4.45
LPHV496569 3.85V 3925mAh 69 65 4.9 4.45
LPHV496570 3.85V 3572mAh 70 65 4.9 4.4
LPHV496586 3.9V 4900mAh 86 65 4.9 4.5
LPHV496587 3.85V 4930mAh 87 65 4.9 4.4
LPHV496588 3.9V 4900mAh 88 65 4.9 4.5
LPHV496591 3.9V 5720mAh 91 65 4.9 4.5
LPHV505295 3.85V 4210mAh 95 52 5 4.4
LPHV506068 3.85V 3450mAh 68 60 5 4.45
LPHV506473 3.85V 4340mAh 73 64 5 4.43
LPHV506479 3.85V 4300mAh 79 64 5 4.4
LPHV506597 3.85V 5920mAh 97 65 5 4.45
LPHV508176 3.9V 5825mAh 76 81 5 4.48
LPHV512627 3.85V 456mAh 27 26 5.1 4.45
LPHV5141126 3.9V 4785mAh 126 41 5.1 4.48
LPHV515974 3.8V 3600mAh 74 59 5.1 4.35
LPHV516384 3.9V 4870mAh 84 63 5.1 4.5
LPHV516479 3.9V 4700mAh 79 64 5.1 4.48
LPHV516487 3.85V 4920mAh 87 64 5.1 4.43
LPHV516586 3.85V 5200mAh 86 65 5.1 4.45
LPHV516587 3.9V 5100mAh 87 65 5.1 4.48
LPHV516792 3.85V 5920mAh 92 67 5.1 4.45
LPHV518181 3.9V 6120mAh 81 81 5.1 4.5
LPHV5234100 3.9V 3460mAh 100 34 5.2 4.5
LPHV526478 3.85V 4620mAh 78 64 5.2 4.45
LPHV526486 3.85V 5080mAh 86 64 5.2 4.45
LPHV526693 3.9V 6070mAh 93 66 5.2 4.48
LPHV526977 3.9V 4970mAh 77 69 5.2 4.5
LPHV526981 3.85V 5260mAh 81 69 5.2 4.45
LPHV535877 3.9V 4773mAh 77 58 5.3 4.48
LPHV535882 3.9V 4870mAh 82 58 5.3 4.5
LPHV536486 3.9V 5400mAh 86 64 5.3 4.5
LPHV536578 3.85V 5124mAh 78 65 5.3 4.45
LPHV536675 3.9V 4715mAh 75 66 5.3 4.48
LPHV536884 3.9V 5420mAh 84 68 5.3 4.48
LPHV536976 3.9V 4992mAh 76 69 5.3 4.48
LPHV542627 3.9V 510mAh 27 26 5.4 4.48
LPHV542829 3.85V 760mAh 29 28 5.4 4.45
LPHV5443116 3.85V 4960mAh 116 43 5.4 4.45
LPHV544791 3.85V 4344mAh 91 47 5.4 4.45
LPHV545974 3.85V 3850mAh 74 59 5.4 4.4
LPHV546481 3.9V 5110mAh 81 64 5.4 4.5
LPHV546656 3.85V 3295mAh 56 66 5.4 4.45
LPHV546774 3.9V 4735mAh 74 67 5.4 4.5
LPHV546776 3.9V 4930mAh 76 67 5.4 4.48
LPHV554791 3.9V 4448mAh 91 47 5.5 4.48
LPHV555569 3.85V 3939mAh 69 55 5.5 4.45
LPHV556480 3.9V 4970mAh 80 64 5.5 4.48
LPHV556587 3.9V 6000mAh 87 65 5.5 4.48
LPHV564975 3.85V 3440mAh 75 49 5.6 4.43
LPHV564994 3.85V 4570mAh 94 49 5.6 4.45
LPHV565079 3.85V 4010mAh 79 50 5.6 4.45
LPHV565875 3.85V 4220mAh 75 58 5.6 4.4
LPHV565880 3.9V 4870mAh 80 58 5.6 4.48
LPHV574459 3.9V 3047mAh 59 44 5.7 4.5
LPHV576981 3.85V 5895mAh 81 69 5.7 4.45
LPHV585381 3.85V 3368mAh 81 53 5.8 4.4
LPHV586075 3.85V 4765mAh 75 60 5.8 4.43
LPHV592435 3.85V 686mAh 35 24 5.9 4.4
LPHV594461 3.85V 2895mAh 61 44 5.9 4.43
LPHV594591 3.9V 4530mAh 91 45 5.9 4.48
LPHV594996 3.9V 5190mAh 96 49 5.9 4.48
LPHV595490 3.85V 5030mAh 90 54 5.9 4.4
LPHV5968116 3.8V 7580mAh 116 68 5.9 4.35
LPHV604047 3.85V 1720mAh 47 40 6 4.45
LPHV6043141 3.85V 6255mAh 141 43 6 4.45
LPHV606072 3.85V 4440mAh 72 60 6 4.4
LPHV606177 3.9V 4900mAh 77 61 6 4.48
LPHV615866 3.85V 3820mAh 66 58 6.1 4.4
LPHV624266 3.85V 3030mAh 66 42 6.2 4.43
LPHV624771 3.9V 4362mAh 71 47 6.2 4.5
LPHV634177 3.85V 3218mAh 77 41 6.3 4.4
LPHV636372 3.85V 4900mAh 72 63 6.3 4.43
LPHV645464 3.85V 4115mAh 64 54 6.4 4.45
LPHV663676 3.85V 2778mAh 76 36 6.6 4.4
LPHV664771 3.9V 4384mAh 71 47 6.6 4.48
LPHV664863 3.85V 3728mAh 63 48 6.6 4.45
LPHV685257 3.85V 3500mAh 57 52 6.8 4.43
LPHV694065 3.85V 3065mAh 65 40 6.9 4.45
LPHV716159 3.85V 4658mAh 59 61 7.1 4.45
LPHV801437 3.85V 404mAh 37 14 8 4.4
LPHV8337109 3.85V 5000mAh 109 37 8.3 4.4
LPHV861441 3.85V 570mAh 41 14 8.6 4.45
