Flexibility Shape LiPo Battery
LiPo batteries can be made in almost any shape and size. This flexibility allows manufacturers to design lipo batteries that fit the specific form factors of their devices, optimizing space and enhancing the overall design.
LiPo Battery LPR18350 3.7V 850mAh
Battery Type |
Cylindrical LiPo Battery |
Part Number |
LPR18350 / 18350 |
Voltage @ Capacity |
3.7V @ 850mAh 3.15Wh |
Protection Circuit |
- |
Thermistor (NTC) |
- |
Wires |
UL1571 AWG26 50mm x 2 |
Connector |
- |
Dimension |
Diameter 18.0mm x Length 36mm |
Charge Current |
1.0-2.0A |
Discharge Current |
5.0 -10.0A |
Working Temperature |
-20°C to +45°C |
More Details |
|
More LiPo Batteries |
LiPo Battery LPC10440 3.7V 320mAh
Battery Type |
Cylindrical LiPo Battery |
Part Number |
LPC10440 / 10440 / 01440 |
Voltage @ Capacity |
3.7V @ 320mAh 1.18Wh |
Protection Circuit |
- |
Thermistor (NTC) |
- |
Wires |
UL1571 AWG26 50mm x 2 |
Connector |
- |
Dimension |
Diameter 10.0mm x Length 45mm |
Charge Current |
0.5C - 1.0C |
Discharge Current |
5C |
Working Temperature |
-20°C to +45°C |
More Details |
|
More LiPo Batteries |
LiPo Battery LPC80440B 3.7V 210mAh
Battery Type |
Cylindrical LiPo Battery |
Part Number |
LPC80440B / 80440 / 08440 |
Voltage @ Capacity |
3.7V @ 210mAh 0.78Wh |
Protection Circuit |
- |
Thermistor (NTC) |
- |
Wires |
UL1571 AWG26 30mm x 2 |
Connector |
- |
Dimension |
Diameter 8.0mm x Length 41mm |
Charge Current |
0.5-1.0A |
Discharge Current |
1.0-1.5A |
Working Temperature |
-20°C to +45°C |
More Details |
|
More LiPo Batteries |

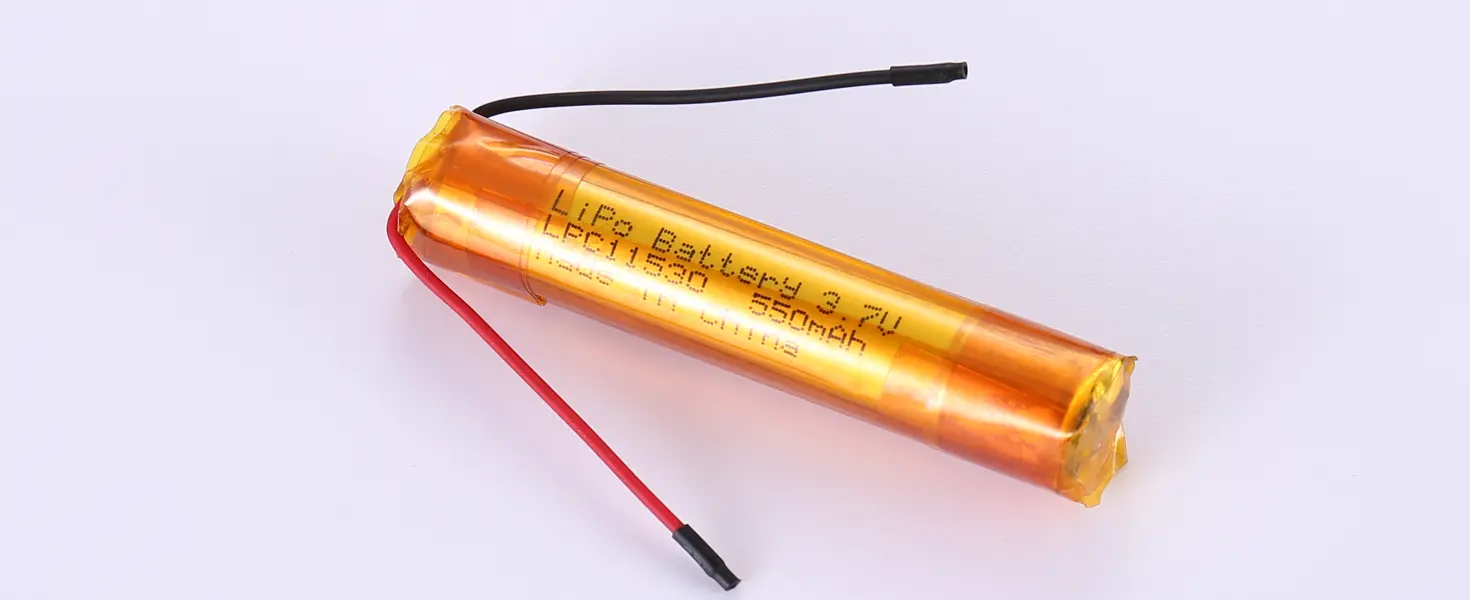

LiPo Battery LPC11530 3.7V 550mAh
Battery Type |
Cylindrical LiPo Battery |
Part Number |
LPC11530 / 11530 |
Voltage @ Capacity |
3.7V @ 550mAh 2.04Wh |
Protection Circuit |
- |
Thermistor (NTC) |
- |
Wires |
UL1571 AWG26 40mm x 2 |
Connector |
- |
Dimension |
Diameter 11.0mm x Length 54mm |
Charge Current |
0.5 - 1.0A |
Discharge Current |
0.5 - 1.0A |
Working Temperature |
-20°C to +45°C |
More Details |
|
More LiPo Batteries |
LiPo Battery LPR13450 3.7V 650mAh
Battery Type |
Cylindrical LiPo Battery |
Part Number |
LPR13450 / LPC13450 / 13450 |
Voltage @ Capacity |
3.7V @ 650mAh 22.2Wh |
Protection Circuit |
- |
Thermistor (NTC) |
- |
Wires |
UL1571 AWG28 40mm x 2 |
Connector |
- |
Dimension |
Diameter 13.0mm x Length 46mm |
Charge Current |
1.0 - 2.0A |
Discharge Current |
10.0A |
Working Temperature |
-20°C to +45°C |
More Details |
|
More LiPo Batteries |
LiPo Battery LPR80500 3.7V 250mAh
Battery Type |
Cylindrical LiPo Battery |
Part Number |
LPR80500 / LPC80500 / 80500 / 08500 |
Voltage @ Capacity |
3.7V @ 250mAh 0.93Wh |
Protection Circuit |
- |
Thermistor (NTC) |
- |
Wires |
UL1571 AWG28 30mm x 2 |
Connector |
- |
Dimension |
Diameter 8.0mm x Length 51mm |
Charge Current |
1.0 - 3.0A |
Discharge Current |
1.0 - 3.0A |
Working Temperature |
-20°C to +45°C |
More Details |
|
More LiPo Batteries |
LiPo Battery LPR16500 3.7V 1100mAh
Battery Type |
Cylindrical LiPo Battery |
Part Number |
LPR16500 / LPC16500 / 16500 |
Voltage @ Capacity |
3.7V @ 1100mAh 4.07Wh |
Protection Circuit |
- |
Thermistor (NTC) |
- |
Wires |
UL1571 AWG28 40mm x 2 |
Connector |
- |
Dimension |
Diameter 16.0mm x Length 51mm |
Charge Current |
1.0 - 3.0A |
Discharge Current |
10.0A |
Working Temperature |
-20°C to +45°C |
More Details |
|
More LiPo Batteries |
